Dom > Produkty> Sterownik ECU> 1J508-59051 Controller ECU for V3800 Engine

1J508-59051 Controller ECU for V3800 Engine

1J508-59051 Controller ECU for V3800 Engine
1J508-59051 Controller ECU for V3800 Engine 1J508-59051 Controller ECU for V3800 Engine
Podstawowe informacje
Miejsce pochodzenia: Chiny
Nazwa handlowa: Jiajue
Numer modelu: V3800
Minimalne zamówienie: 1 szt
Cena: $800/pc
Szczegóły pakowania: 1J508-59051 Sterownik ECU dla silnika V3800 jest pakowany w standardowe opakowanie eksportowe zgodni
Czas dostawy: 1-5 Dzień roboczy
Zasady płatności: L/C, D/A, D/P, T/T, Western Union,
Możliwość Supply: 100 sztuk/miesiąc
Najlepsza cena Skontaktuj się teraz
Szczegóły informacji
Nazwa produktu: 1J508-59051 ECU sterownika dla silnika V3800 Tworzywo: Stal
Miejsce pochodzenia: Guangdong, Chiny MOQ: 1
OEM: Wsparcie
Podkreślić:

V3800 Engine ECU Controller

,

1J508-59051 Engine Controller

,

ECU Controller for V3800

opis produktu

1J508-59051 Controller ECU for V3800 Engine
High-quality replacement Controller ECU specifically designed for V3800 engines, ensuring optimal performance and reliability.
Product Specifications
Product Name Controller ECU
Part Number 1J508-59051
Brand Name JIAJUE
Model V3800
Condition Used
Availability Rich Stock
Approximate Weight 1.5KG
Size (per unit) 25cm x 20cm x 8cm
Delivery Time Usually delivered within 1-3 days after payment
Product Images

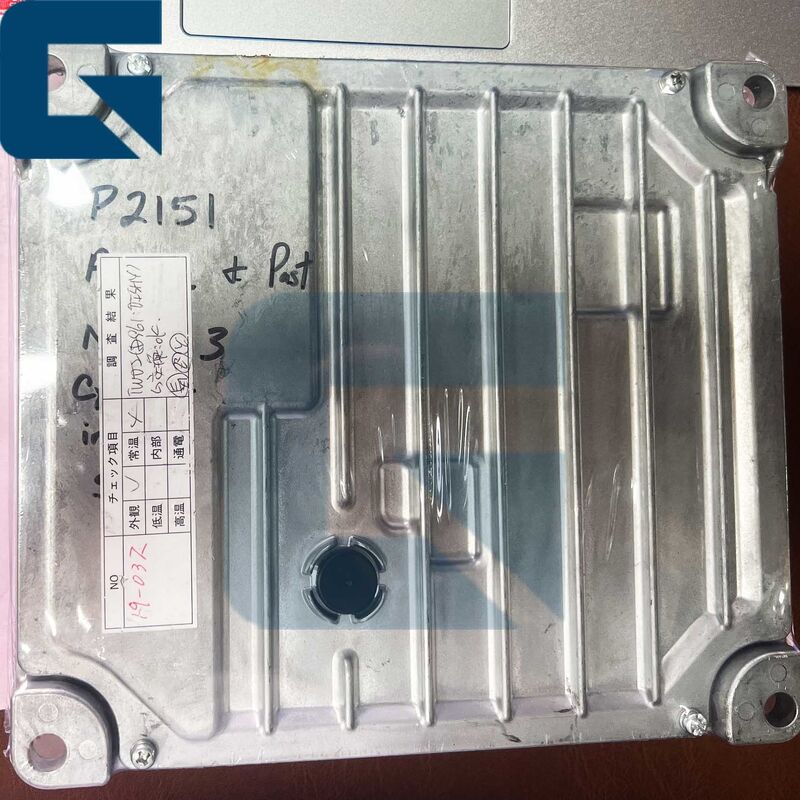

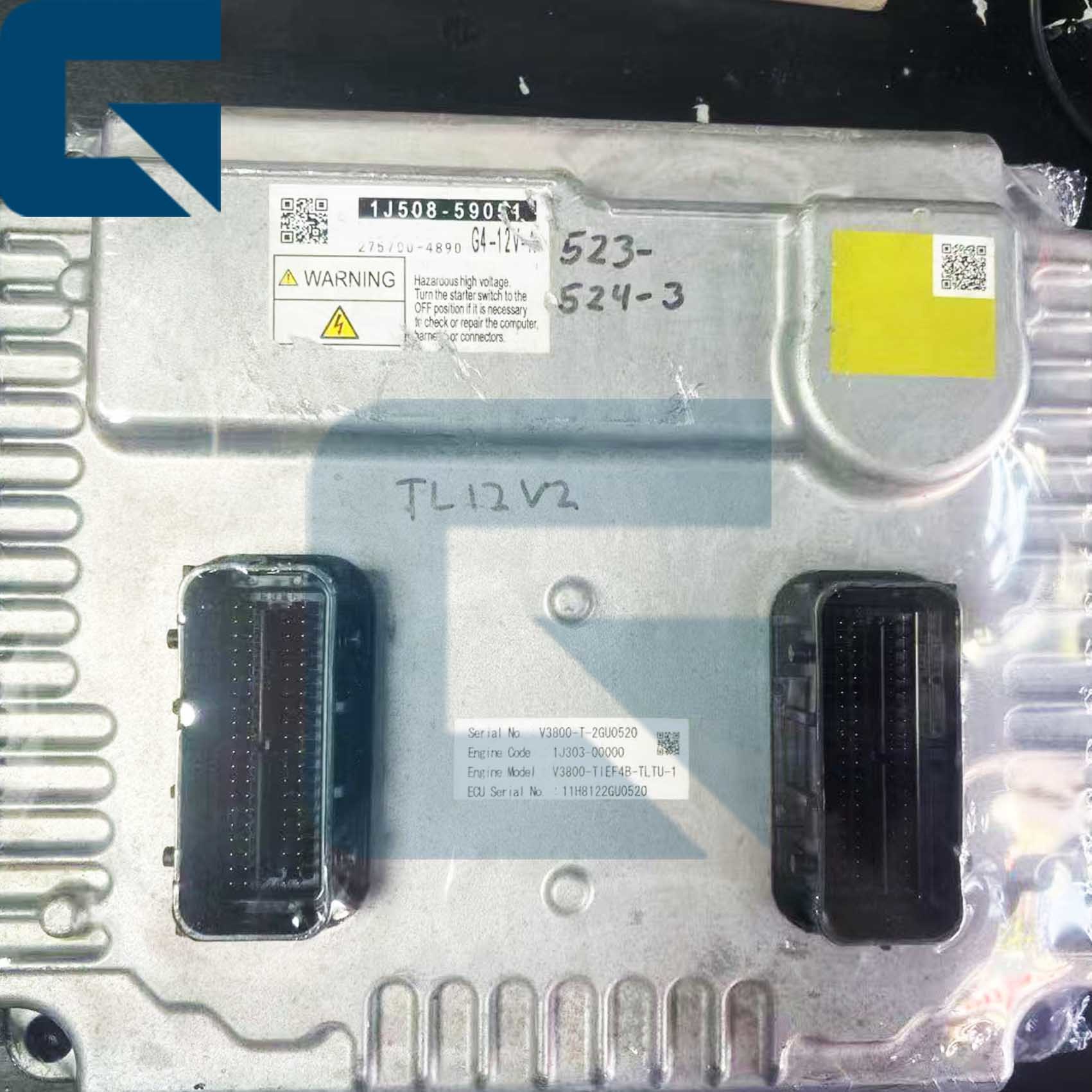

1J508-59051 Controller ECU for V3800 Engine 0 1J508-59051 Controller ECU for V3800 Engine 1
Related Products
1J508-59051 Controller ECU for V3800 Engine 2
Frequently Asked Questions
Q1: How long does it take to install the ECM on machine?
  • Physical Installation: 15-30 minutes. The unit is typically secured by 4 bolts on the cool side of the engine.
  • Programming & Testing: 30-60 minutes.
  • Pro Tip: If the ECM is pre-programmed by us based on your machine's serial number, it is essentially "Plug & Play." If not, you will need a Cat ET (Electronic Technician) tool to flash the software, which takes additional time. We recommend professional installation to ensure correct parameter synchronization.
Q2: How to determine if the ECM is faulty and needs replacement?
  • The ET diagnostic tool cannot communicate with the ECM, or it displays a "Module Not Responding" error. This is a critical sign of internal hardware failure.
  • Active fault codes related to internal memory (EEPROM) or voltage reference issues that persist after checking the wiring harness often indicate ECM failure.
  • Sudden engine stalling, severe power loss (Limp Mode), or persistent misfiring (missing injector driver signals) after sensors and harnesses have been ruled out.
  • Visible signs of overheating (burning smell), water ingress, corrosion, or broken pins on the connector headers.
Q3: What's your payment method?
Our payment methods include T/T, L/C, PayPal, etc.
Q4: Do you have stock?
Rich stock available.
Q5: How can I know my order is already shipping?
When the goods ship, we will share the tracking number. For sea or air freight, we can provide the bill of lading.
Step-by-Step Testing Guide
Pro-Tip: HEUI (Hydraulic Electronic Unit Injection) systems are extremely sensitive to contamination. A single speck of dust can cause premature failure.
  1. Prepare: Ensure the excavator is turned off and safely secured. Disconnect the battery to avoid electrical accidents.
  2. Inspect: Check the ECU for physical damage or loose connections.
  3. Connect Diagnostic Tool: Use a diagnostic tool recommended by the excavator's manufacturer. Connect it to the ECU according to the tool's instructions.
  4. Read Codes: Use the diagnostic tool to read any error codes (DTCs) stored in the ECU. These codes indicate potential problems with the ECU or connected systems.
  5. Check Live Data: View live data parameters such as sensor readings and system voltages. Ensure they are within normal ranges.
  6. Functional Tests: If possible, perform tests to activate components or simulate sensor inputs. Verify that the ECU responds correctly without delays or errors.
  7. Reset (if needed): Reset the ECU if recommended by the manufacturer, especially after repairs or replacements.
  8. Document: Keep a record of all tests, codes, and results for future reference.
Quick Checklist for Buyers
Before replacing the ECM, always check the fuses, main relays, and ground connections. In many cases, a faulty ground wire or low battery voltage mimics an ECM failure.
